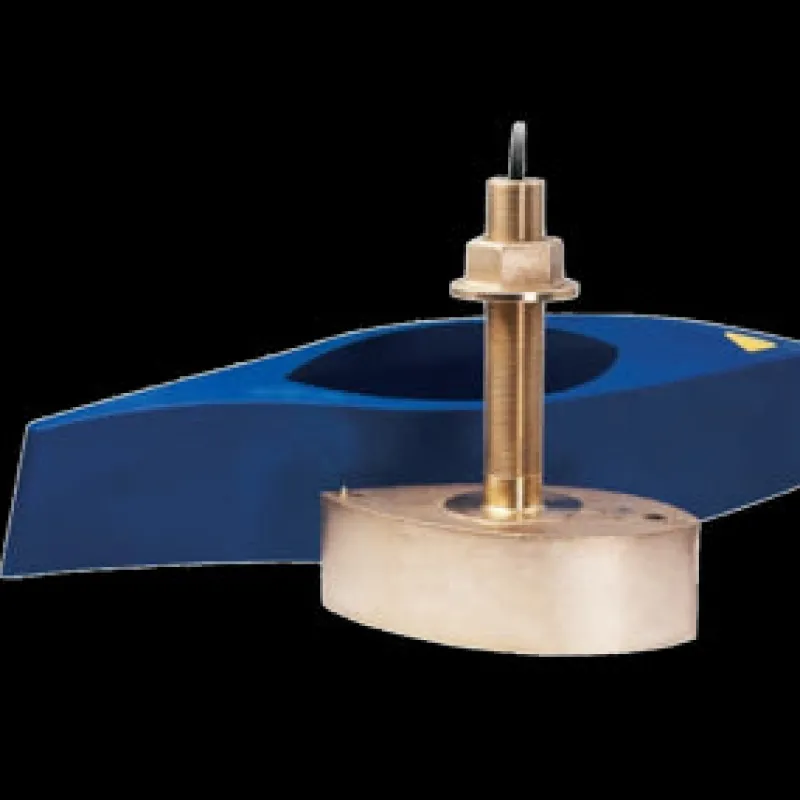

Airmar Marine Transducers|Flies>Simrad/Lowrance B275HW Xsonic

Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready B275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500′). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducers with wide-beam coverage.

The included High-performance Fairing improves broadband results at speeds over 30 knots (34 MPH).

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep-water performance from the low frequency
• Low frequency: 42 to 65 kHz
• 25° to 16° beamwidth
• Maximum depth of 914 m (3000′)
• High frequency: 150 to 250 kHz
• 25° constant beamwidth
• Maximum depth of 152 m (500′)
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper-water column
• Bronze housing with High-performance Fairing for optimal performance at higher speeds
• Also available as transom (TM275LHW) and pocket (PM275LHW) mounts
• Patented Xducer ID^® technology
